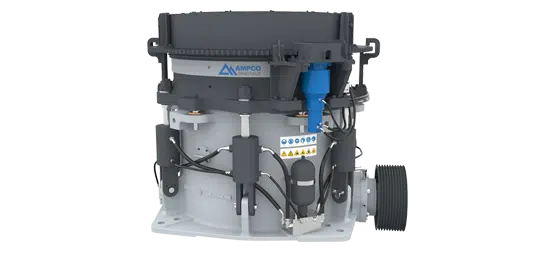

C & CM Series Cone Crushers
The C & CM Series Cone Crushers are designed with a high pivot point and a large eccentric throw, which leads to a greater feed intake capacity and increased production. The crusher has high-grade alloy steel main frames, high-load-bearing bronze bushings, and advanced hydraulic controls, resulting in a reliable machine that is safe and easy to operate and maintain.
Product Features
- A combination of a high pivot point, large eccentric throw and high crushing forces to maximize production and shape
- Heavy-duty rigid and durable crusher body
- Oversized tramp cylinders for increased reliability in tough applications
- Hydraulic clearing, clamping and tramping circuits for simple push button controllability
- Several liner configurations are available, from secondary extra coarse to tertiary fine applications in a single machine
- Single skid combining both lube and hydraulic units
- Automated controls with remote potential available
Metric
Imperial
Technical Parameter Table
|
Model
|
Head Diameter (mm) | Maximum Feed Size (mm) | Capacity (mtph) | Motor Power (kW) | Weight (kg) |
|---|---|---|---|---|---|
| C35 | 889 | 170 | 85-300 | 132-160 | 11,000 |
| C40 | 1,016 | 210 | 100-450 | 220-250 | 14,500 |
| C45 | 1,143 | 235 | 150-600 | 315 | 21,500 |
| C50 | 1,270 | 280 | 180-650 | 355-400 | 28,500 |
| C55 | 1,445 | 300 | 220-850 | 450 | 38,500 |
| C65 | 1,651 | 305 | 310-1,000 | 500-550 | 56,000 |
| C75 | 1,850 | 360 | 375-1500 | 710 | 76,000 |
| CM75 | 1,905 | 330 | 400-1,500 | 550-630 | 90,000 |
| CM80 | 2,083 | 335 | 510-2,300 | 630-710 | 132,000 |
| CM90 | 2,337 | 365 | 650-3,000 | 750-1,000 | 163,000 |
