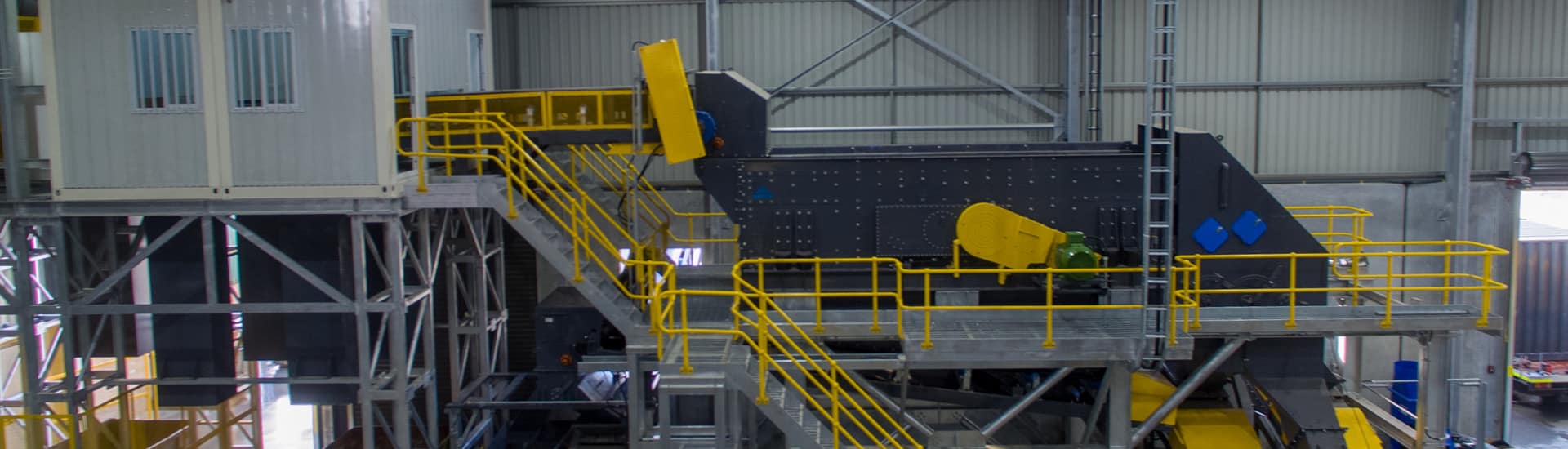

SH/SHFS Series Horizontal Screens
The SH/SHFS Series Horizontal Screen boast an impressive screening efficiency of up to 95% and can handle high tonnage throughput for both fixed and mobile installations. This compact screen is available in multi-deck configurations, which provide flexibility to cater to different product requirements.
The horizontal screen features an adjustable stroke angle, amplitude, and operating speed, allowing for better management of mineral processing requirements. The combination of flexible adjustments, elliptical motion, and high acceleration force of up to 6G results in a highly efficient screen.
Product Features
- Available in multi-deck configurations from 2 to 4 decks
- Application flexibility with an adjustable stroke length, stroke angle and speed
- Elliptical motion screen capable of handling up to 6G’s
- Huck bolted designs for increased reliability
- Oil lubricated
- Rubber, polyurethane, wire mesh and punch plate options available
- Crowned or flat decks, depending on media
Metric
Imperial
Technical Parameter Table
SH – Horizontal Screen
| Model | Decks | Width x Length (mm x mm) | Maximum Feed Size (mm) | Motor Power (kW) |
|---|---|---|---|---|
| SH5162 | 2 | 1,562 x 4,900 | 200 | 22 |
| SH5163 | 3 | 1,562 x 4,900 | 200 | 22 |
| SH6162 | 2 | 1,930 x 4,900 | 200 | 22 |
| SH6163 | 3 | 1,930 x 4,900 | 200 | 30 |
| SH6202 | 2 | 1,930 x 6,100 | 200 | 30 |
| SH6203 | 3 | 1,930 x 6,100 | 200 | 30 |
| SH6204 | 4 | 1,930 x 6,100 | 200 | 37 |
| SH7202 | 2 | 2,235 x 6,100 | 200 | 37 |
| SH7203 | 3 | 2,235 x 6,100 | 200 | 37 |
| SH7204 | 4 | 2,235 x 6,100 | 200 | 37 |
| SH8202 | 2 | 2,540 x 6,100 | 200 | 37 |
| SH8203 | 3 | 2,540 x 6,100 | 200 | 37 |
SHFS – Horizontal Fines Screen
| Model | Decks | Width x Length (mm x mm) | Maximum Feed Size (mm) | Motor Power (kW) |
|---|---|---|---|---|
| SH5162 | 2 | 1,562 x 4,900 | 50 | 30 |
| SH5163 | 3 | 1,562 x 4,900 | 50 | 30 |
| SH6162 | 2 | 1,930 x 4,900 | 50 | 30 |
| SH6163 | 3 | 1,930 x 4,900 | 50 | 37 |
| SH6202 | 2 | 1,930 x 6,100 | 50 | 37 |
| SH6203 | 3 | 1,930 x 6,100 | 50 | 37 |
| SH6204 | 4 | 1,930 x 6,100 | 50 | 45 |
| SH7202 | 2 | 2,235 x 6,100 | 50 | 45 |
| SH7203 | 3 | 2,235 x 6,100 | 50 | 45 |
| SH7204 | 4 | 2,235 x 6,100 | 50 | 45 |
| SH8202 | 2 | 2,540 x 6,100 | 50 | 45 |
| SH8203 | 3 | 2,540 x 6,100 | 50 | 45 |
