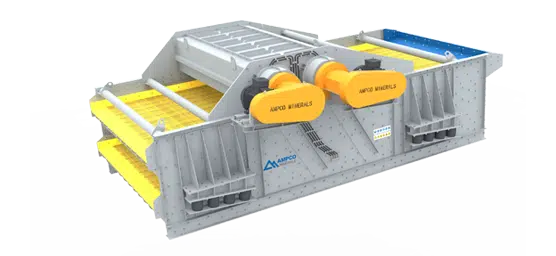

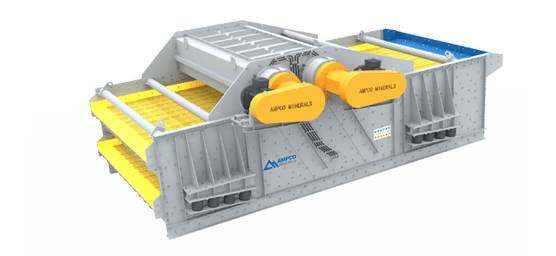

SL Series Linear Motion Screens
The SL Series linear motion screen effectively dislodges and conveys material across the screen with its straight-line motion and high G-force. Due to their self-synchronizing drives and low angle of inclination, the screen has low headroom and a small footprint and offers easier service and maintainability compared to many other screen models. It can accommodate a wide range of media options and features easy adjustments for fine-tuning the screen depending on your application requirements.
Product Features
- Application flexibility with an adjustable stroke length, screen angle and speed
- Flexibility for different product requirements
- Optimized performance with minimum blinding
- Reliable operation, capable of high tonnage rates
- Huck bolted designs for increased reliability
- Easy to maintain
- Multiple media options from rubber to polyurethane and wire mesh
Metric
Imperial
Technical Parameter Table
|
Model
|
Decks | Width x Length (mm x mm) | Maximum Feed Size (mm) | Motor Power (kW) |
|---|---|---|---|---|

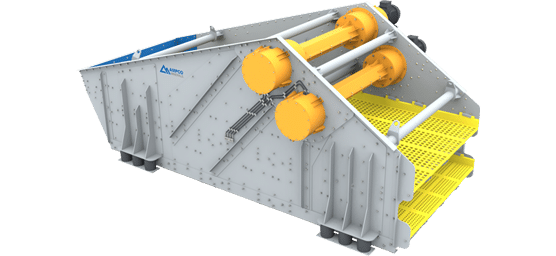

| SL24602 | 2 | 2,400 x 6,100 | 150 | 22 x 2 |
| SL24732 | 2 | 2,400 x 7,300 | 150 | 22 x 2 |
| SL30602 | 2 | 3,000 x 6,100 | 150 | 37 x 2 |
| SL30732 | 2 | 3,000 x 7,300 | 150 | 37 x 2 |
| SL36602 | 2 | 3,600 x 6,100 | 150 | 37 x 2 |
| SL36732 | 3 | 3,600 x 7,300 | 150 | 37 x 2 |
