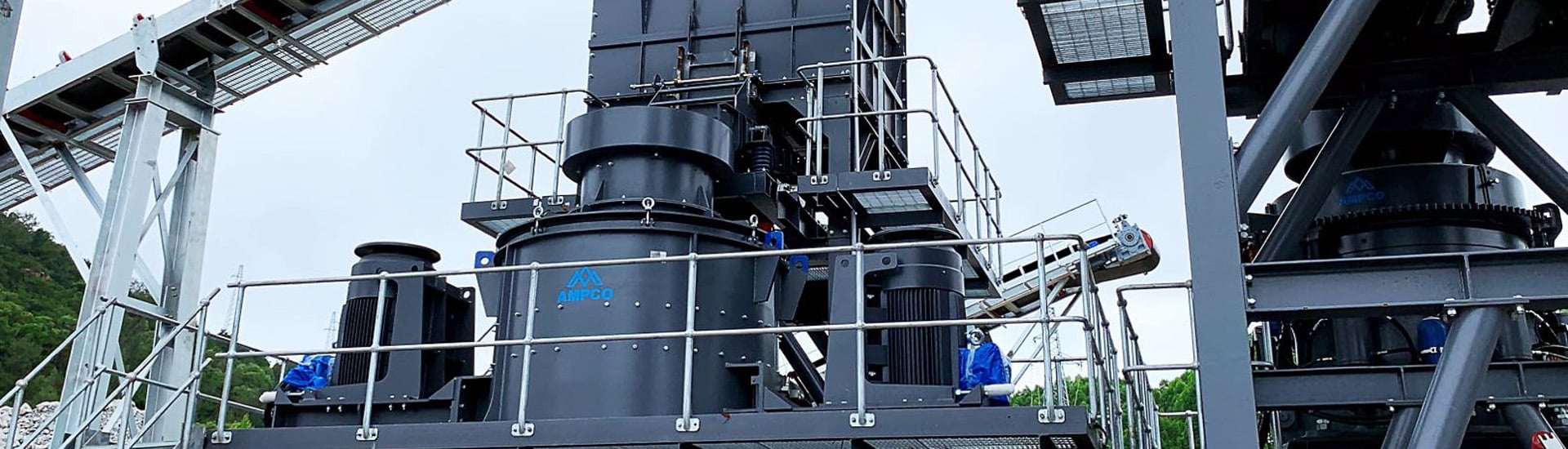

V Series Vertical Shaft Impactor CrushersGlobal Supplier & Manufacturer of Mineral Processing Solutions
The Vertical Shaft Impact Crusher can process highly abrasive materials and produce aggregates and manufactured sand in a cubical shape. The hydraulic lifting cylinder enables access to internal parts, which reduces downtime for inspection and maintenance.
The crushing chamber can quickly be changed from rock-on-rock (ROR), rock-on-steel (ROS), or steel-on-steel chambers (SOS), depending on the application, providing flexibility at variable speeds. The feed chute has an air transfer system to help reduce dust emissions. An optional water-spraying system can be added to maintain a clean chamber when processing sticky materials.
Product Features
- Multiple cavity design in ROR, ROS, and SOS within a single machine
- Hydraulic lid opening which allows for safe, quick access for inspection and maintenance
- Oil lubricated for constant pressure, flow, and temperature
- Sensor package to protect the crusher from vibration, errant start-up during maintenance, overheating, or loss of oil
- Externally adjustable feed tube
- Inspection door for daily inspection
- Internal air transfer system to reduce dust emissions
Metric
Imperial
Technical Parameter Table
|
Model
|
Chamber | Maximum Feed Size (mm) | Capacity (mtph) | Motor Power (kW) | Speed (rpm) | Weight (kg) |
|---|---|---|---|---|---|---|
| V70 | ROS | 40 | 100 – 200 | 160 – 220 | 1,600 – 2,000 | 11,000 |
| ROR | 40 | 100 – 200 | 160 – 220 | 1,600 – 2,000 | 9,500 | |
| V90 | SOS | 90 | 150 – 300 | 200 – 320 | 960 – 1,450 | 13,000 |
| ROS | 40 | 200 – 400 | 160 – 320 | 1,200 – 1,750 | 12,000 | |
| ROR | 40 | 200 – 400 | 160 – 320 | 1,200 – 1,750 | 11,000 | |
| V100 | SOS | 100 | 200 – 500 | 500 – 630 | 750 – 1,250 | 14,500 |
| ROS | 60 | 250 – 500 | 315 – 630 | 1,200 – 1,750 | 15,200 | |
| ROR | 60 | 250 – 500 | 315 – 630 | 1,200 – 1,750 | 12,700 | |
| V110 | SOS | 100 | 300 – 500 | 500 – 800 | 600 – 1,150 | 16,500 |
| ROS | 50 | 350 – 500 | 400 – 700 | 960 – 1,450 | 15,000 | |
| ROR | 50 | 350 – 500 | 400 – 700 | 960 – 1,450 | 13,000 |
